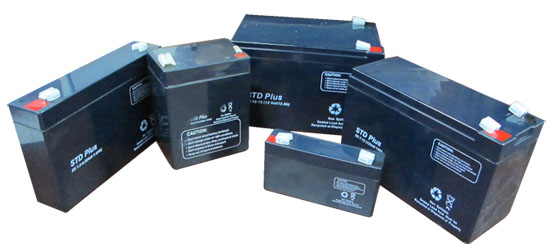

AGM (Absorbed Glass Matt) Batteries (Domestic)
The Lion ‘ES’ range of AGM batteries (Domestic), in both 6 and 12 volt specifications, offer durability and deep cycle capability for heavy demand applications, up to 12 AH capacity.
- The spill and leak-proof design allows for multi-position usage and is completely maintenance-free eliminating the need for watering.
- The ‘ES’ AGM range is ideally suited for Uninterruptible Power Supplies (UPS), Marine equipment and navigation aids, Medical applications, telecommunications, and a host of specific AGM applications.
| LION PART NO. | VOLTS | AMP HOUR (20hr Rate) | RC (Mins) | NOM. LENGTH (mm) | NOM. WIDTH (mm) | NOM. HEIGHT (mm) | WEIGHT (KG) | TERMINAL | BATTERY ASSEMBLY | WARRANTY (MONTHS *) |
|---|---|---|---|---|---|---|---|---|---|---|
| ES1.3-6 | 6 | 1.3 | 98 | 25 | 52 | 0.32 | M | D | 12 | |
| ES3.2-6 | 6 | 3.2 | 134 | 34 | 60 | 0.7 | M | D | 12 | |
| ES5-6 | 6 | 4 | 70 | 47 | 102 | 0.82 | M | A | 12 | |
| ES7.2-6 | 6 | 7.2 | 150 | 34 | 94 | 1.27 | M | D | 12 | |
| ES12-6 | 6 | 12 | 151 | 50 | 93.5 | 2 | M | D | 12 | |
| ES1.3-12 | 12 | 1.3 | 96.5 | 45 | 53 | 0.57 | M | D | 12 | |
| ES2.2-12 | 12 | 2.2 | 177 | 34 | 60 | 0.96 | M | D | 12 | |
| ES2.9-12 | 12 | 2.9 | 78 | 55 | 98 | 1.17 | M | C | 12 | |
| ES3.3-12 | 12 | 3.3 | 133.5 | 67 | 61 | 1.39 | M | C | 12 | |
| ES5-12 | 12 | 5.7 | 90 | 70 | 101 | 1.84 | M | D | 12 | |
| ES7.5-12 | 12 | 7.5 | 151 | 65 | 94 | 2.5 | M | E | 12 | |
| ES12-7.5HR | 12 | 9 | 151 | 65 | 94 | 2.64 | M | E | 12 | |
| ES12-12 | 12 | 12 | 150 | 97 | 98 | 4 | M | E | 12 |
